Beaufighter Mk IF экспериментальный с разнесенным оперением
![Bristol Beaufighter - pic_108.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_108.jpg)
![Bristol Beaufighter - pic_109.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_109.png)
Beaufighter Mk IF 1-й серии
![Bristol Beaufighter - pic_110.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_110.jpg)
Beaufighter Mk IF 1-й серии с радаром Al Mk IV
![Bristol Beaufighter - pic_111.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_111.jpg)
![Bristol Beaufighter - pic_112.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_112.png)
Beaufighter Mk IF 1-й серии с радаром Al Mk IV хвостовое колесо неубираемое
![Bristol Beaufighter - pic_113.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_113.jpg)
Beaufighter Mk IF средних серий
![Bristol Beaufighter - pic_114.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_114.jpg)
![Bristol Beaufighter - pic_115.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_115.jpg)
Beaufighter Mk IF поздних серий на воздухозаборниках карбюраторов стоят противопылевые фильтры
![Bristol Beaufighter - pic_116.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_116.jpg)

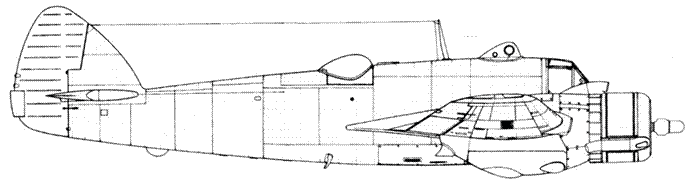

![Bristol Beaufighter - pic_117.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_117.png)
Beaufighter Mk IFpaHHnx серий выхлопные патрубки без плямягасителей
![Bristol Beaufighter - pic_118.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_118.jpg)
Beaufighter Mk ^ранних серий кабина наблюдателя доработана для монтажа пулемета
![Bristol Beaufighter - pic_119.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_119.jpg)

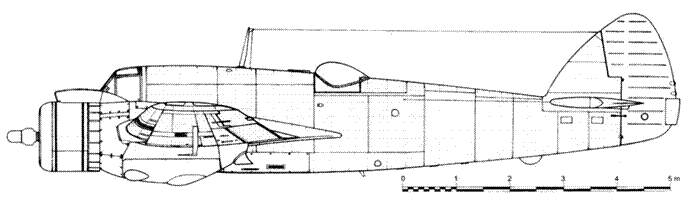

![Bristol Beaufighter - pic_120.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_120.png)
Beaufighter Mk IF поздних серий с филтрами на воздухозаборниках
![Bristol Beaufighter - pic_121.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_121.jpg)
Beaufighter Mk IF №T3032 с двигателями RR Merlin X, январь 1942 r.
![Bristol Beaufighter - pic_122.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_122.jpg)
![Bristol Beaufighter - pic_123.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_123.png)
Beaufighter Mk IF №T3032 в поздней конфигурации
![Bristol Beaufighter - pic_124.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_124.jpg)
Beaufighter Mk II прототип №R2061 с двигателями Роллс-Ройс Exe
![Bristol Beaufighter - pic_125.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_125.jpg)
![Bristol Beaufighter - pic_126.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_126.png)
Beaufighter Mk II прототип №T3177 с двигателями Роллс-Ройс Griffon и четырехлопастными винтами
![Bristol Beaufighter - pic_127.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_127.jpg)
![Bristol Beaufighter - pic_128.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_128.png)
Beaufighter Mk IIF – модифицированный Mk IF: камера за кабиной, измененный хвост, мачта антенны отсутствует
![Bristol Beaufighter - pic_129.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_129.jpg)

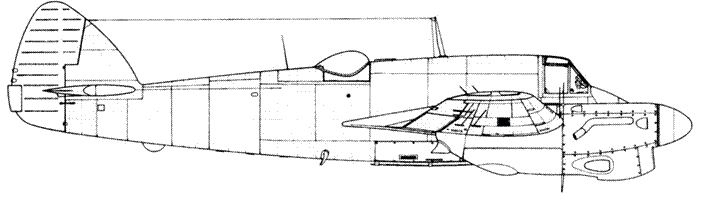

![Bristol Beaufighter - pic_130.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_130.png)

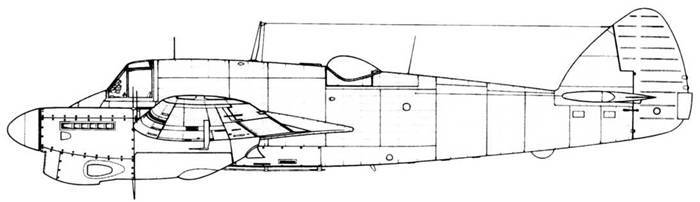

Beaufighter Mk IIF ранних серий
![Bristol Beaufighter - pic_131.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_131.jpg)
![Bristol Beaufighter - pic_132.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_132.png)
Beaufighter Mk IIF поздних серий
![Bristol Beaufighter - pic_133.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_133.png)
Beaufighter Mk IIF последних серий антенна радара Al Mk IV удалена
![Bristol Beaufighter - pic_134.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_134.jpg)
![Bristol Beaufighter - pic_135.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_135.png)

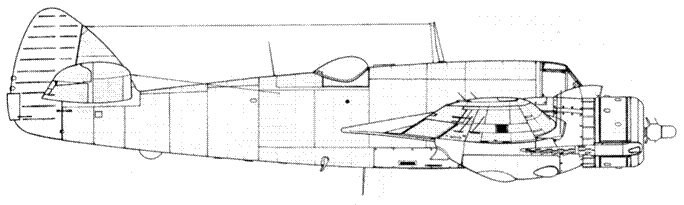

Beaufighter Mk V первый прототип с турелью Boulton-Paul
![Bristol Beaufighter - pic_136.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_136.png)
Beaufighter Mk VIF ранних серий
![Bristol Beaufighter - pic_137.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_137.jpg)
Beaufighter Mk VIF с радаром ASV
![Bristol Beaufighter - pic_138.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_138.jpg)
Beaufighter Mk VIF с радаром Al Mk IV
![Bristol Beaufighter - pic_139.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_139.jpg)
Компоновочная схема Beaufighter Mk VIC Размещение радиооборудования в хвосте фюзеляжа
![Bristol Beaufighter - pic_140.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_140.jpg)
![Bristol Beaufighter - pic_141.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_141.jpg)

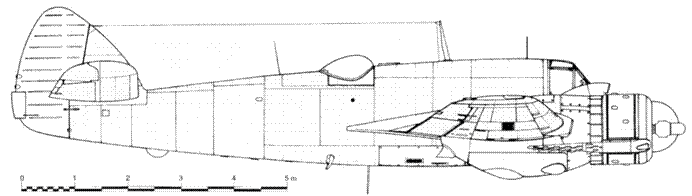

Beaufighter Mk VIF одна из первых машин с радаром Al Mk VIII
![Bristol Beaufighter - pic_142.png](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_142.png)
Beaufighter Mk VIF средних серий
![Bristol Beaufighter - pic_143.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_143.jpg)
Двигатель Hercules VI, установленный на «Бьюфаитере» Mk V1C
![Bristol Beaufighter - pic_144.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_144.jpg)
Хвостовой эвакуационный люк Mk IC/F и Mk VIC/F
![Bristol Beaufighter - pic_145.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_145.jpg)
Кресло пилота Mk IC/F и Mk VIC/F
![Bristol Beaufighter - pic_146.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_146.jpg)
Люк наблюдателя на Mk IC/F и Mk VIC/F
![Bristol Beaufighter - pic_147.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_147.jpg)
Control column
![Bristol Beaufighter - pic_148.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_148.jpg)

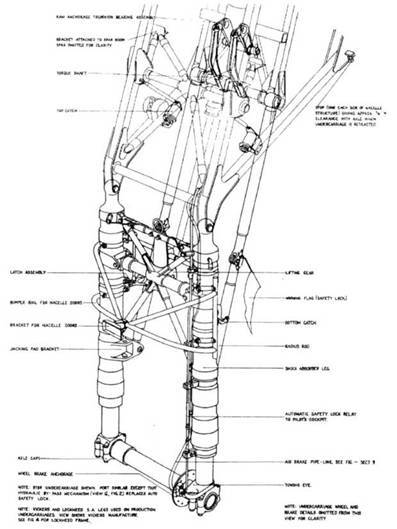

Хвостовая стойка шасси
![Bristol Beaufighter - pic_149.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_149.jpg)
Стойка основного шасси
![Bristol Beaufighter - pic_150.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_150.jpg)
Конструкция ниши основного шасси
![Bristol Beaufighter - pic_151.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_151.jpg)
Установка пушек, вид с патронными ящиками и без
![Bristol Beaufighter - pic_152.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_152.jpg)
Установка пулеметов в крыле
![Bristol Beaufighter - pic_153.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_153.jpg)
Конструкция крыла TF Mk X
![Bristol Beaufighter - pic_154.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_154.jpg)
Конструкция хвостовой части фюзеляжа TF Mk X
![Bristol Beaufighter - pic_155.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_155.jpg)

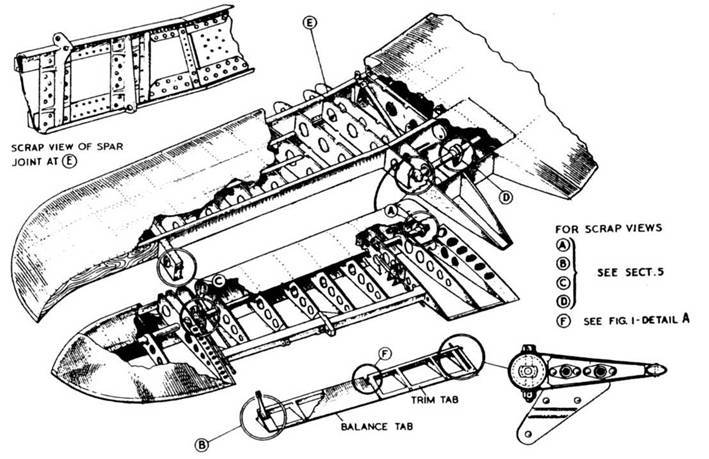

Конструкция стабилизатора TF Mk X
![Bristol Beaufighter - pic_156.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_156.jpg)
Подвесной
топливный бак TF Mk X
![Bristol Beaufighter - pic_157.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_157.jpg)
Размещение пушек и пулеметов на TF Mk X
![Bristol Beaufighter - pic_158.jpg](https://all-library.ru/pic/2/3/7/4/3/6/237436/1423598170/pic_158.jpg)
Размещение пушек на TF Mk X
